    High Current Assess Arc Resistance Performance Flammability Testing Equipment

    Ask Lasest Price
    Brand Name : HAIDA
    Model Number : 6009-HD
    Certification : ISO,CE,
    Price : Negotiable
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability : 300 Sets per Month Haida
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

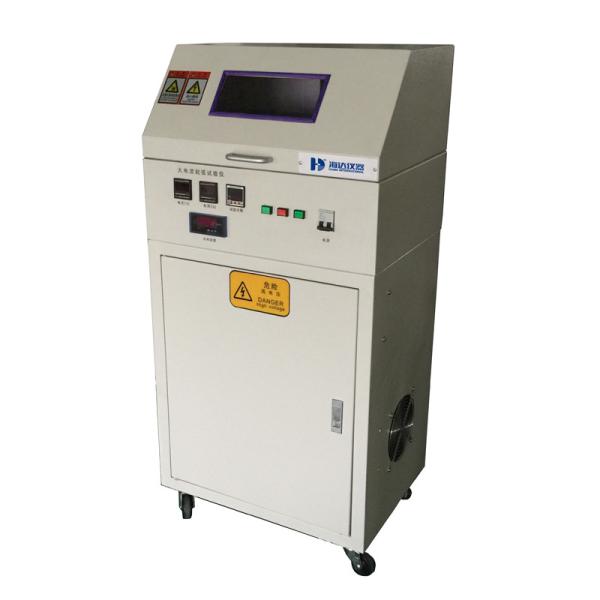

    High Current Assess Arc Resistance Performance Flammability Testing Equipment


    High-Current Arc Resistance to Ignition Tester


    Description:


    This tester is designed to evaluate the arc resistance performance of electrical/electronic products, household appliances, and their materials. It simulates leakage currents between live parts of opposite polarity or between live parts and grounded metal components, measuring and assessing the arc resistance of insulating materials under specified voltages.


    Standard:


    IEC 60950, GB/T 4943


    High Current Assess Arc Resistance Performance Flammability Testing Equipment


    Technical Parameters:


    Model6009-HD
    Test Voltage220V–240V
    Electrode Separation Speed254mm ±25mm per second
    Arc FrequencyApproximately 40 arcs per minute.
    Test ElectrodesFixed Electrode: Solid copper conductor (Ø3.5mm) with a 30° beveled tip
    Moving Electrode: Stainless steel rod (Ø3mm) with a 60° conical tip
    Electrodes are positioned at a 45° angle to the horizontal plane; tip curvature radius <0.1mm.
    Short-Circuit CurrentAdjustable inductive load to achieve a power factor of 0.5 and short-circuit current of 33A
    Key FeaturesIntegrated test chamber and load box (upper section for testing, lower for load). Enclosure: Painted steel with stainless steel/brass components. Electrodes: Copper (fixed) and stainless steel (moving), resistant to high temperatures and corrosion.
    Power SupplyAC 220V, 50Hz

    ABOUT HAIDA

    High Current Assess Arc Resistance Performance Flammability Testing Equipment

    High Current Assess Arc Resistance Performance Flammability Testing Equipment

    High Current Assess Arc Resistance Performance Flammability Testing Equipment


    Why choose us?

    1.Design & Production : Solution Consultation for each order
    Recommend the most cost -performance machine
    Research & Develop the suitable one for Special- designed Model.
    2.Shipping & Delivery: One-Stop Service
    Production- Deliver to your door - Installation & Training- Technical Support
    3.Warranty
    1 year warranty with lifetime technology support
    4.After-Sale Service
    React within 2 Hours
    Video inspection & on-site service combined


    FAQ


    Q: How about your warranty?

    A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.


    Q: What is the order process?

    A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.


    Q: Can we visit your factory before order?

    A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.


    Q: Do you accept customization service?

    A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
