    Accurate Flammability Testing Equipment for Flexible Cellular Polymeric Materials with ISO 3582 Standard

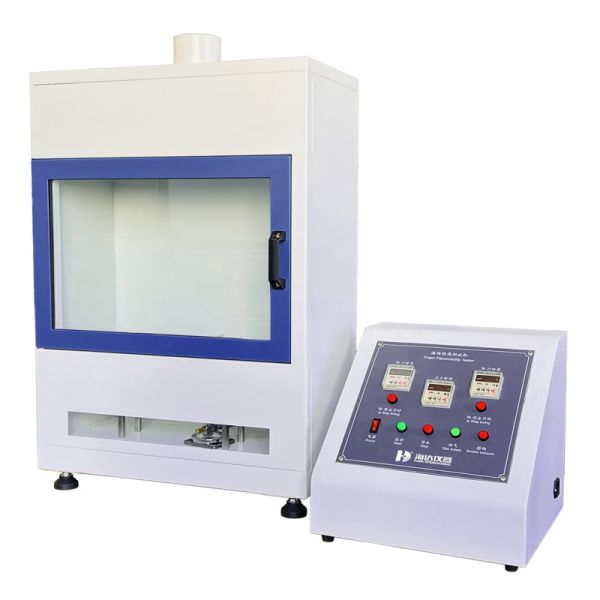

    Flexible Cellular Polymeric Materials Horizontal Burning Test Apparatus


    Description:


    This test apparatus is designed and manufactured in accordance with ISO 3582 standard to evaluate the horizontal burning characteristics of flexible cellular polymeric materials when exposed to low-energy heat sources.


    Compliance Standard:


    ISO 3582

    Accurate Flammability Testing Equipment for Flexible Cellular Polymeric Materials with ISO 3582 Standard


    Technical Parameters:


    Model6013-HD
    Combustion Chamber Dimensions (L×W×H)600×300×760mm, with glass observation door
    Ventilation Slit Dimensions450×50mm
    tb TimerAdjustable range: 0.01–99.99 seconds/minutes/hours
    Ignition TimeAdjustable range: 0.01–99.99 seconds/minutes/hours
    te TimerAdjustable range: 0.01–99.99 seconds/minutes/hours
    Burning Angle90° (vertical position)
    Flame Temperature1000±100°C (optional)
    Burner SpecificationsNozzle inner diameter: Ø9.5±0.3mm
    Wing-top nozzle with 60° cone angle
    Nozzle dimensions: 48mm (length) × 3.0mm (width)
    Flame HeightInner flame: 6mm; Outer flame: 38mm
    Support Grid Dimensions215×75mm
    Support Grid Height175±25mm from chamber base
    Power SupplyAC 220V, 50Hz
