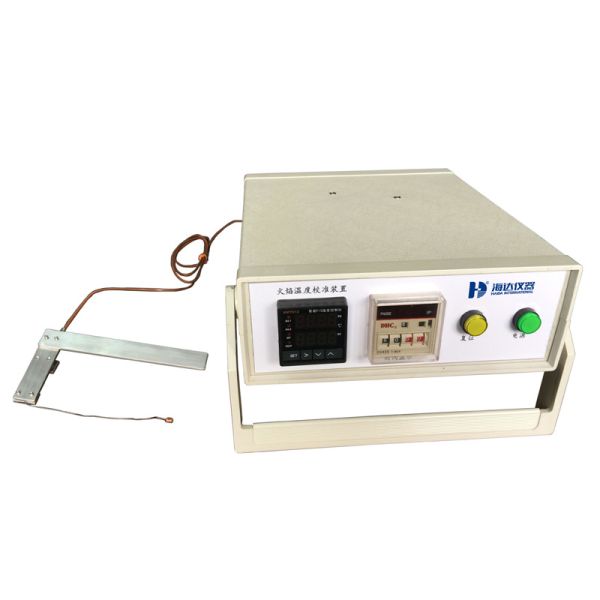

    Flame Temperature Calibration Device 500W Essential Tool for Fire Hazard Testing of Electric and Electronic Products

    Ask Lasest Price
    Brand Name : HAIDA
    Model Number : 6015-HD
    Certification : ISO,CE,
    Price : Negotiable
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability : 300 Sets per Month Haida
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

    Flame Temperature Calibration Device 500W Essential Tool for Fire Hazard Testing of Electric and Electronic Products


    Flame Temperature Calibration Device 500W


    Description:


    This calibration device is designed in accordance with ASTM D5207-03 and related IEC, UL, GB standards for measuring flame temperatures in combustion test equipment.


    Calibration Procedure:


    Position the copper block 55±1mm above the needle flame burner.
    Ignite the flame; the time for the copper block temperature to rise from 100°C±2°C to 700°C±3°C must be 54±2 seconds to validate the flame for testing.

    Perform three measurements, allowing the copper block to cool naturally to <50°C between tests.


    Reference Standard:


    ASTM D5207-03: Standard Practice for Confirmation of 20-mm (50-W) and 125-mm (500-W) Test Flames for Small-Scale Burning Tests on Plastic Materials.


    GB/T 5169.15: Fire Hazard Testing for Electric and Electronic Products — Part 15: Test Flames — 500W Flame Apparatus and Confirmational Test Methods.


    IEC 60695-11-3: Fire hazard testing for electric and electronic products — Part 11-3: Test flames — 500W flames — Apparatus and confirmational test methods.


    Flame Temperature Calibration Device 500W Essential Tool for Fire Hazard Testing of Electric and Electronic Products


    Technical Parameters:


    Model6015-HD
    ThermocoupleArmored K-type (NiCr/NiAl) fine-wire thermocouple with a 0.5mm diameter sheath
    TimerAdjustable range: 0.01–99.99 seconds
    Copper Block Specifications
    DiameterØ9.00±0.01mm
    Length19.14±0.02mm
    Bevel Angle45±0.5°
    Mass (Pre-drilling)10.00g±0.05g
    MaterialHigh-conductivity electrolytic copper
    Surface FinishFully polished
