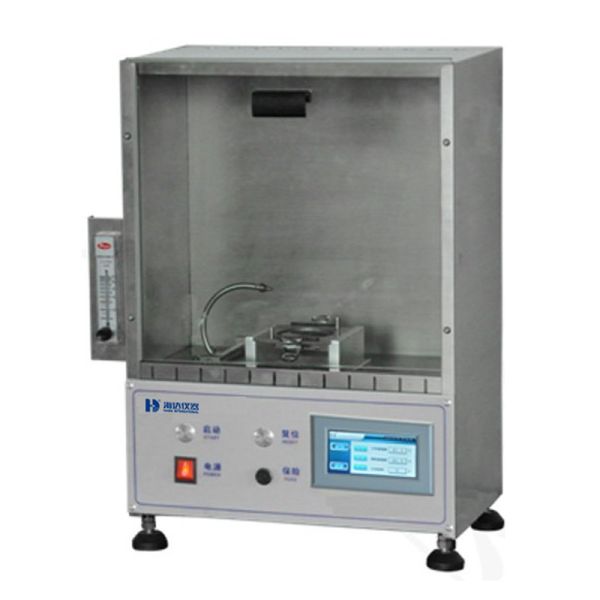

    AC 220V Blanket Flammability Test Equipment ASTM D4151-2010

    Ask Lasest Price
    Brand Name : HAIDA
    Model Number : 6025-HD
    Certification : ISO,CE,
    Price : Negotiable
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability : 300 Sets per Month Haida
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

    AC 220V Blanket Flammability Test Equipment ASTM D4151-2010


    Blanket Flammability Tester


    Description:


    Blanket Flammability Tester evaluates the flame resistance and surface flame spread characteristics of blanket fabrics. The test method involves exposing specimens to a standardized flame for a specified duration, then assessing the burning degree, damage, or discoloration of standard test paper to grade the fabric's performance.


    Compliance Standards:


    ASTM D4151 Standard Test Method for Flammability of Blankets


    AC 220V Blanket Flammability Test Equipment ASTM D4151-2010


    Technical Parameters:


    Model6025-HD
    ControlPLC + 5" color touchscreen
    BurnerUS-made No.18 needle (ASTM D4151-2010 §6.3-6.4 compliant)
    ASTM-specified micro gas flow valve (0-50mL/min)
    Chamber520(H)×375(W)×220(D)mm stainless steel, 12ר12.7mm vents, glass window (ASTM D4151-2010 §6.1)
    Auto-timing0.1s resolution
    Ignition time0-99.99s adjustable
    Test modesTimed ignition/Flame impact
    Brush device0.41mm nylon bristles (20 strands/cluster, 4 clusters/25mm, 19mm length) per ASTM D4151-2010 §6.5
    Sample holderASTM D4151-2010 §6.2 compliant
    4.11 Includes 16mm flame/8mm ignition distance templates
    GasButane (chemically pure)
    Marker thread11.7tex3 white cotton
    Weight30±5g
    4.21 Cloud data/control options (as above)
    Dimensions600×400×370mm
    PowerAC220V/50Hz, 50W

    ABOUT HAIDA

    AC 220V Blanket Flammability Test Equipment ASTM D4151-2010

    AC 220V Blanket Flammability Test Equipment ASTM D4151-2010

    AC 220V Blanket Flammability Test Equipment ASTM D4151-2010


    Why choose us?

    1.Design & Production : Solution Consultation for each order
    Recommend the most cost -performance machine
    Research & Develop the suitable one for Special- designed Model.
    2.Shipping & Delivery: One-Stop Service
    Production- Deliver to your door - Installation & Training- Technical Support
    3.Warranty
    1 year warranty with lifetime technology support
    4.After-Sale Service
    React within 2 Hours
    Video inspection & on-site service combined


    FAQ


    Q: How about your warranty?

    A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.


    Q: What is the order process?

    A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.


    Q: Can we visit your factory before order?

    A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.


    Q: Do you accept customization service?

    A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
