    Upholstered Furniture Ignition Resistance Tester With Stainless Steel Burner Tubes And Observation Window

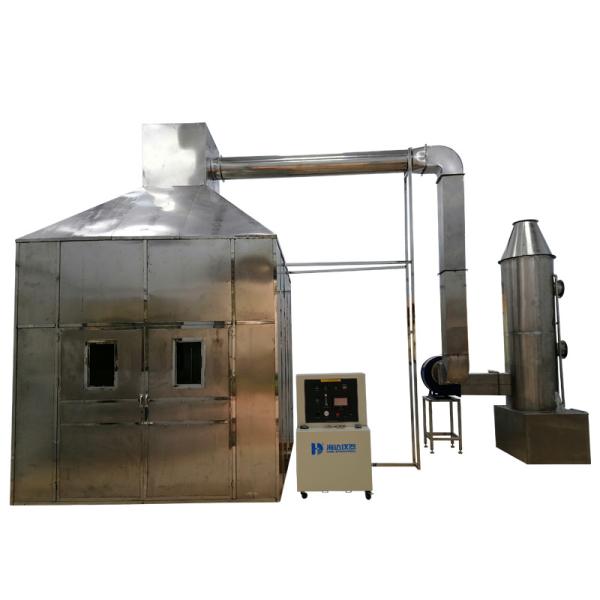

    Upholstered Furniture Ignition Resistance Tester


    Description:


    Upholstered Furniture Ignition Resistance Tester is evaluates ignition resistance of public-use mattresses, sofas, and other upholstered furniture. Simulates match-flame ignition to assess fire resistance of fabric covers, linings, and fillings.


    Compliance Standards:


    1.1 ISO 8191-2: Furniture — Assessment of the ignitability of upholstered furniture — Part 2: Ignition source match flame equivalent

    1.2 ISO 8191-2 specifies test methods and evaluation criteria for assessing ignition resistance of upholstered furniture using a match-flame-equivalent ignition source.

    Upholstered Furniture Ignition Resistance Tester With Stainless Steel Burner Tubes And Observation Window


    Technical Parameters:


    Model6030-HD
    Test ChamberVolume: 27m³ (3×3×3m); Double-layer stainless steel with 40mm thermal insulation; Ventilation system included
    Ignition SystemStainless steel burner tubes (2 sets): Ø8±0.1mm (outer), Ø6.5±0.1mm (inner), 200±5mm length
    Gas DeliveryHose: 2.5–3mm length, Ø7±1mm inner diameter
    Flow ControlFlowmeter, fine-tuning valve, shutoff valve, regulator; Flow rate: 45±2 mL/min at 2.8kPa
    Observation WindowTempered glass with SUS304 stainless steel frame
    Ignition MethodHigh-voltage electronic auto-ignition
    Control SystemPLC-based microcomputer; Automated test timing/recording; User-friendly interface
    Emission PurificationThree-stage stainless steel (SUS304) scrubber tower (Ø800×3500mm):
    • Spray system (water-filter interaction)
    • Particulate filtration (eco-friendly filter media)
    • Exhaust (high-power forced ventilation)
