    1/250000 Resolution Paper Testing Equipments Four Point Bending Stiffness

    Ask Lasest Price
    Brand Name : HAIDA
    Model Number : HD-A544
    Price : USD5000-10000/set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 300set/month
    Delivery Time : 15 days after order
    • Product Details
    • Company Profile

    1/250000 Resolution Paper Testing Equipments Four Point Bending Stiffness

    1/250000 Resolution Paper Testing Equipments Four Point Bending Stiffness

    Product Description

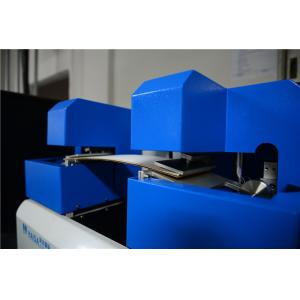

    Paper Four-Point bending stiffness tester measures the bending stiffness of corrugated board and heavy paperboard rapidly and accurately. The unique design of the pneumatic clamps permits measurements of warped and twisted samples without impairing results.


    Main technical parameters

    Test itemThis machine is mainly used to test an elastic deformation of the specimen's bending resistance.
    Test samplecardboard (A, B, C & E flute).
    SensorA high-precision sensor is used to collect the linear deformation of the sample when it is bent and transmitted to the microprocessor through the communication port. After calculation, it is displayed on the machine screen. The sensor automatically sets a zero point to compensate for different thicknesses of cardboard.
    Test sample lengthcardboard length is adjustable from 50 to 300mm.
    Motor and screwStepper motor, left and right ball screw, the test length can be automatically adjusted by the machine itself, which is very convenient.
    Maximum sample width100mm
    The machine can provide the following precise strength20g x 4 ea, 50g x 4 ea, 100g x 4 ea, 300g x 2 ea
    Power supplysingle phase, AC 110 / 220V, 250W
    Compressed air6 kg / cm2
    Resolution1/250000
