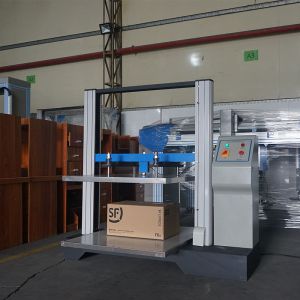

Multi-Function Package Testing Machine TM 2101 Paper Testing
Equipment
Product Description:
Compression testet is mainly used to test the compressive strength
of various types of secondary normal size corrugated carton and
other packaging containers FCL. This includes the packing for food
and beverage instant noodles, cosmetics, beer, cereals and oil,
etc. The instrument is well-controlled and developed with the
advanced technological features, making it one of the most
cost-effective universal carton compression tester in the current
domestic market.
Features:
The pattern of Test reports can be self-designated; test data can be displayed directly in the
main screen; Choosing translational, comparative mode at the same
time to make a number of curve data comparison;
With a variety of measurement units, Measure In Imperial & Metric are switchable; With self-return &
auto-correction function; With automatic magnification function, in
order to achieve the most appropriate size of the graphics;
With the user-defined Test methods; with experimental data analysis function; It can do test of
compression, bending, pressure holding & fatigue.
With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.
Technical Parameters:
| Parameter | Description |
|---|
| Control system | Windows 7, RS-232 Interface |
| Software | TM 2101 |
| Max. Force | 2000 Kg (20KN) |
| Test Force | Tensile, Compression, Bending, Shear, Peel |
| Load Precision | Within ±0.25% |
| Display | LCD Display |
| Data display | Load, Displacement, Speed, Loading Rate And Elapsed Time |
| Force reading | Kgf, Ibf, N, KN, T Etc |
| Test Speed | 10 ±3mm/min (0.01~200mm/min Adjustable) |
| Application | Package Testing |
| Standard Test Machine | ISTA Standard Test Machine |
| Testing Instruments | Packaging Testing Instruments |
Applications:
From home appliances to electronic products and shoes, food, medicine and even furniture, there is a need of carton packaging for many types of industries.
The specific packaging materials could be corrugated boxes,
honeycomb boxes and even plastic barrels used for edible oil or
mineral water. Other materials could also be paper barrels,
cartons, paper cans, container barrels (IBC barrels), among many
others.
Customization:
Package Testing Equipment
Brand Name: HAIDA
Model Number: HD-A502S-1200
Place of Origin: Guangdong, China (Mainland)
Certification: ISO,CE
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: ach set protected with resin fiber and PP film,
then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash,
escrow
Supply Ability: 150 Sets per Month
Load Precision: Within ±0.25%
Test Speed: 10 ±3mm/min (0.01~200mm/min Adjustable)
Load cell Resolution: 1/250,000
Application: Box Compressive Strength Tester, corrugated box
testing equipment, Box Compressive Strength Tester
Force reading: Kgf, Ibf, N, KN, T Etc
