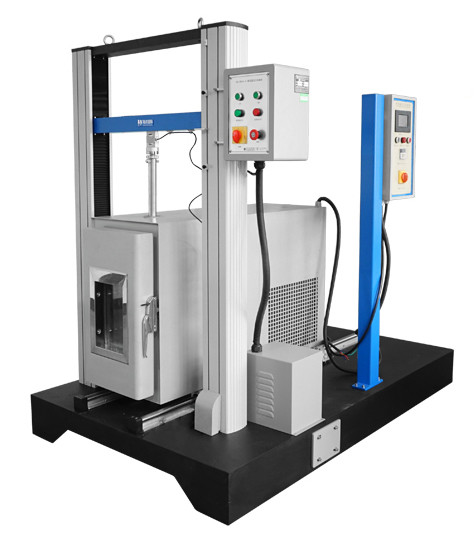

Computer Servo Material Tensile Compression Strength Testing
Machine With PC Control
607S haida universal test machine.pdf
Tensile strength tester
Items | Specification |
Capacity (optional) | 100, 200, 500, 1000, 2000kg |
Unit (Switchable) | G, KG, N, KN, LB |
Load Resolution | 1/100,000 |
Load Accuracy | < ± 0.5% |
Stroke (exclude the grips) | 400 500 600 mm (can be adjusted higher by requirements) |
Test speed | 0.1~500 mm/min Selectable |
Effective Width | 400 mm |
Operation Mode | Controlled by PC |
Weight (exclude the grips) | 130 Kg |
Display | PC (can be programmed any of the customer's data ) |
Motor | AC Servo Motor |
Dimension(L×W×H)-Main Unit | 1200×600×1500mm |
Dimension of the testing space | 400×700×400mm(customizable) |
Testing width | 40cm ( can be widened by requirements) |
Power | 1#, 220V, 10A |
Rotation method | high precision ball screw rod |
Fixture | can be customized stretching and compressing fixture |

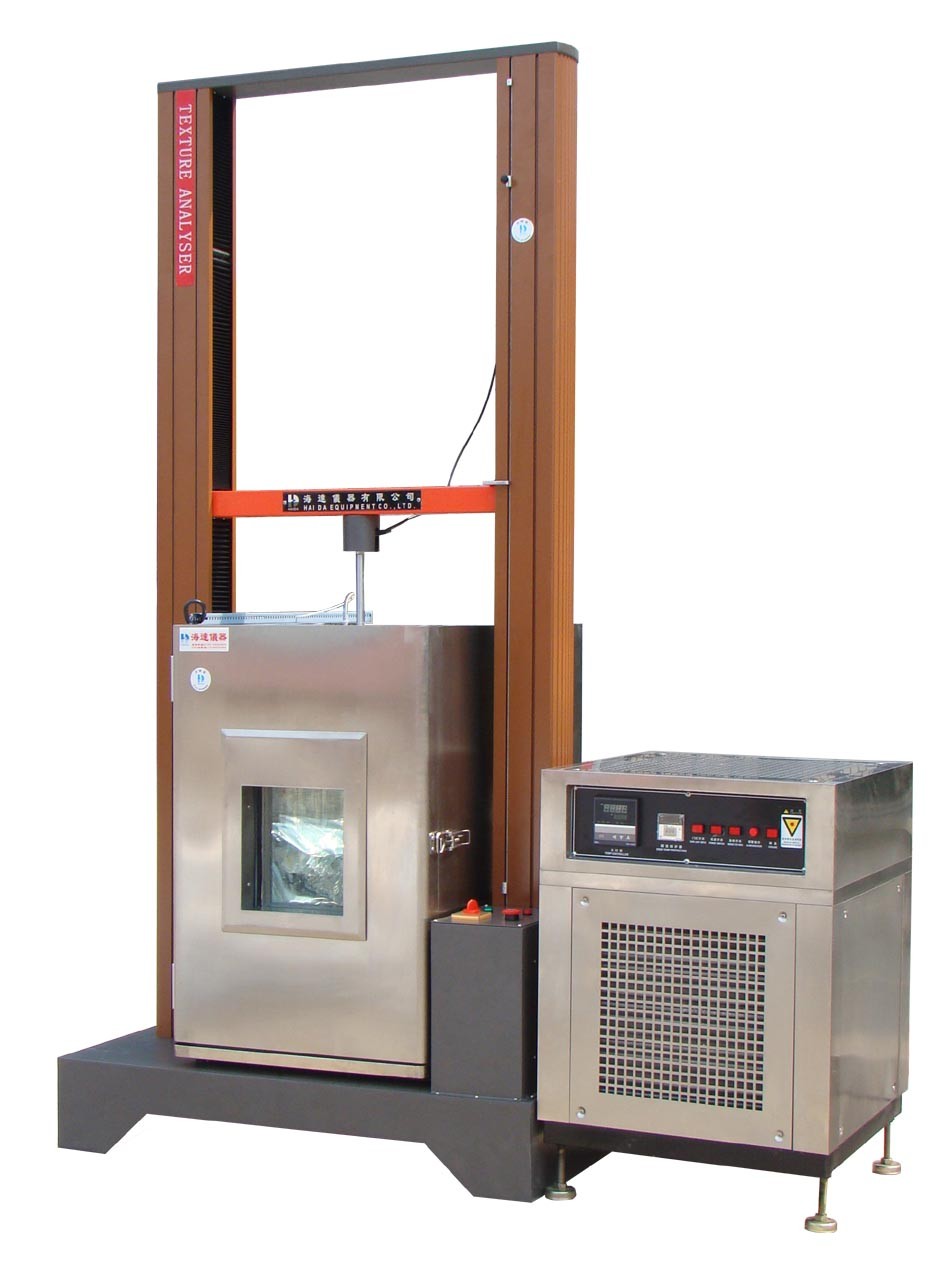

Temperature control chamber:
Items | Specification |
Temperature range | -40°C ~150°C |
Control method | P.I.D Automatic calculation |
Humidity range | 20%~98% |
Tem & Hum accuracy | ±0.5°C, ±2.5% RH |
Temp& Humid regularity | ±2°C, ±3% RH |
Compressor | France Tecumseh |
Cooling Speed | 1 °C/ min |
Counter | LED,0~9999.99 |
Inner material | SUS 304 Stainless steel |
Inner Chamber size | (L×W×H)40×40×70cm (can custom) |
Theory:
Place the sample between the upper and lower fixture, use a given
speed to pull the upper fixture upward, and the upper load cell
with sensor to check tensile strength and convert the strength into
voltage sign and output to the display screen.And the strength
value will be displayed automatically on the computer.
Features:
1. Motor system: Panasonic servo motor +Servo driver +High precise
ball screw (Taiwan)
2. Control system: a, computer control with TM2101 software; b,
Back to origin automatically after the test, c, store data
automatically or by manual operation
3. Data transmission: RS232
4. Displacement resolution: 0.001mm
5. Graph scale automatic optimization can make graph to display
with best measurement and can implement graphics dynamic switching
in the test and has force-elongation, force- time, elongation
-time, stress - strain.
6. It can save results automatically after test finished, and it is
manual filing. It can display maximum force, yield strength,
compressive strength, tensile strength, elongation, peel interval
maximum, minimum and average, etc.
7. User can set parameters of product material such as length,
width, thickness, radius, area and so on.
8. Many languages random switching: Simplified Chinese, Traditional
Chinese, and English.
