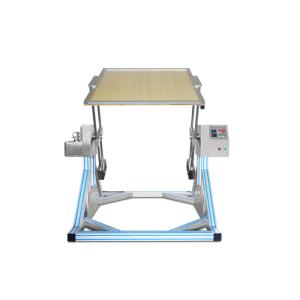

    Digital Display Strollers Testing Machine , 100 Degree Rotary Table Strollers Tester

    Ask Lasest Price
    Brand Name : HAIDA
    Certification : ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC
    Model Number : HD-J208
    Price : Negotiable
    Delivery Time : 20 days after order confirmed
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability : 300 Sets per Month Haida
    • Product Details
    • Company Profile

    Digital Display Strollers Testing Machine , 100 Degree Rotary Table Strollers Tester


    Digital Display Strollers Testing Machine , 100 Degree Rotary Table Strollers Tester


    Test status:
    Basket or seat mounted on the frame. Operation basket or seat fixed on the frame 200 fixtures.
    Load block A on the basket at the bottom of the class 0 car seat, or the B load block on the seat inside or F load block on the 0 + class car seat and fasten it to the center.
    If the car bed design can carry more than one child using multiple test load placed on each one in each child take a regional.
    Wheel or axle wagon is fixed in a rigid platform, this platform around the axis parallel to the ground.
    Slowly accompanied by the test load car clockwise and counterclockwise rotation of 100 degrees to enable the fixtures to test load transferred to the frame. Test steps:
    1, the test weight is placed on the baby inside the car, the four wheels of the stroller on the table;
    2, manually wheel turn in the same direction 100 °, back in situ, and then reverse direction to turn 100 degree;

    3. Observe the testing process, with the changes of position by force, strollers parts of the force to tear cause damage;

    Parameters


    Design standardsEN1888
    Control modesmanual control
    Test surface materialP-60 sandpaper
    Angle ModulationMotor
    Angle DisplayDigital
    Angle Accuracy Tolerance<1 degree
    Maximum weight100KG
    Angle0 ° - 20 °

    Testing purposes:


    Digital Display 100 Degree Rotary Table Strollers Testing Equipment is for the dynamic, the infant carrier or seat fixed on the frame of the device must not break down, loose or may not have any damage in the test or test.
